SL3000-X
Current Harmonic Sensor
Category:
The SL3000-X series current harmonic sensor primarily monitors the motor circuit current. The motor circuit input end is powered by high and low voltage switchgear. The current harmonic sensor senses the main circuit current signal and outputs it to the sensor edge terminal for digital signal processing and analysis. It extracts current harmonic characteristic values and waveforms to diagnose motor rotor faults, air gap eccentricity faults, winding faults, etc. It features simple installation, safety, and high reliability.
Contact:
Design characteristics
· Installed in high and low voltage switchgear
· Overload multiple: 1.2 times
· Frequency range: 0.02Hz~10kHz
· Signal output type: 4mA~20mA ， -1V~1V ， 0V~1V
· Isolation withstand voltage: AC 3000V/min (Between primary and secondary)
· Accuracy class: 0.2 class
Product Advantages
· Snap-on type Installation, No need Device power-off operation
· Can Be customized arbitrarily according to the motor's rated current or Current The secondary current of the current transformer
· Can extract characteristic values and waveforms of harmonic currents
· Can diagnose common electrical faults of the motor such as rotor, air gap, and winding
· Has Advantages of simple installation, safety, and high reliability
Product Parameters

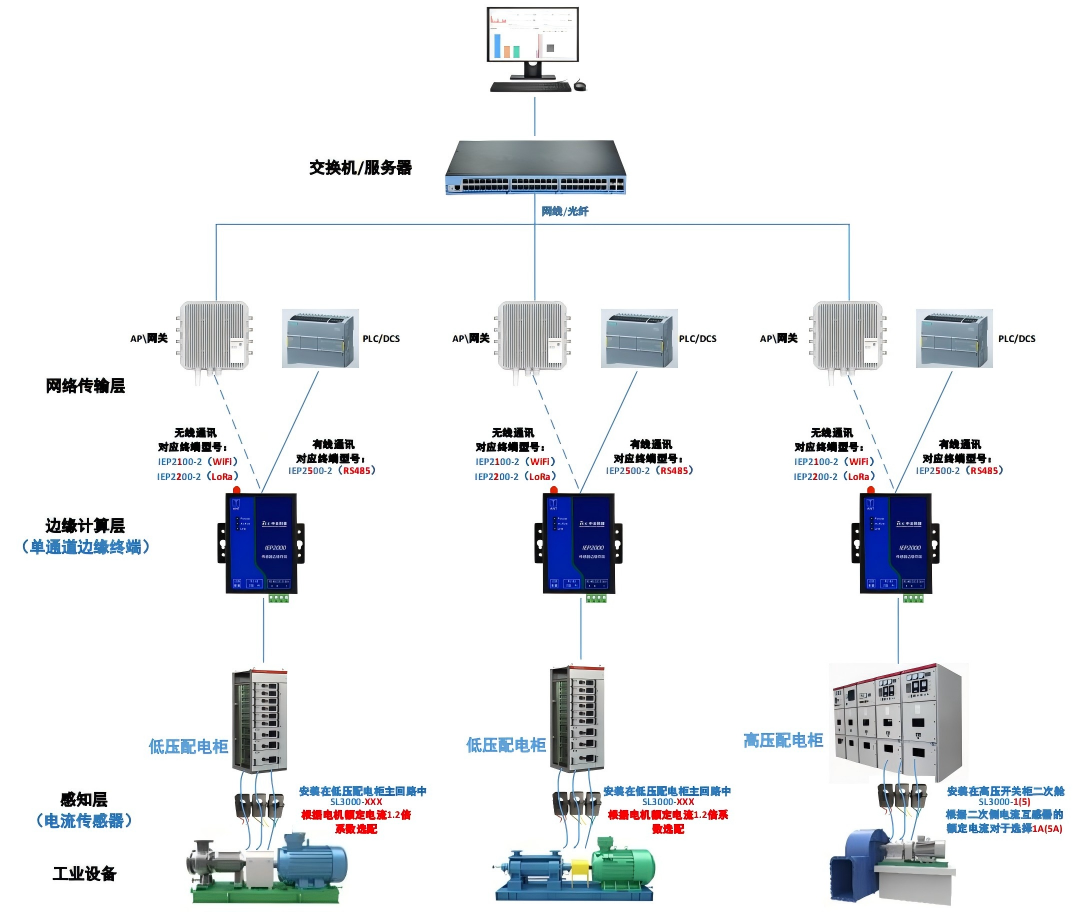

Application Topology
Product Specifications
| Parameters | Indicators |
| Basic Parameters | |
| Rated Input Current | 1A, 5A or other specifications |
| Rated Output Type | -1V~1V (default), 4mA~20mA and 0V~1V (customized) |
| Overload Multiple | 1.2 times |
| Isolation Withstand Voltage | AC 3000V/min (primary to secondary) |
| Frequency Range | 0.02Hz~10kHz |
| Accuracy Level | Class 0.2 |
| Insulation Resistance | Above 1000MΩ |
| Environmental Parameters | |
| Operating Temperature | -20°C~85°C |
| Storage Temperature | -20°C~150°C |
| Structural Parameters | |
| Housing Material | Environmentally Friendly Flame Retardant |
| Housing Dimensions | Customizable according to cable, busbar and other dimensions |

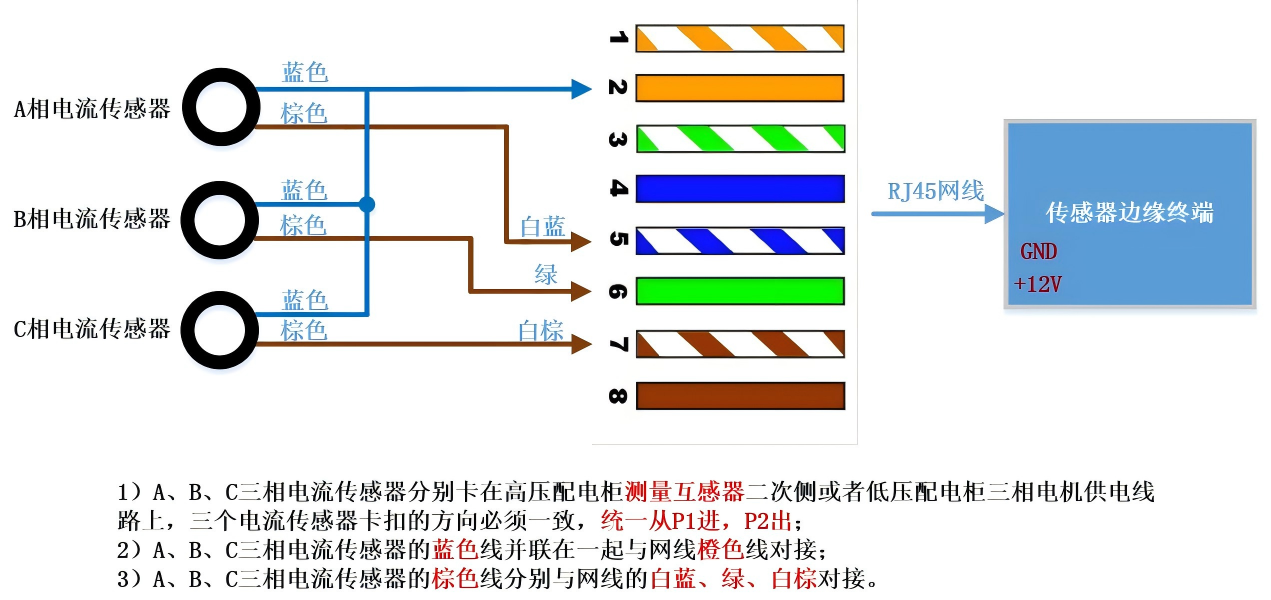

Wiring Diagram Description
Series Model Guide
| SL | 30 | 00 | - | X |
| Basic Model | Sensor Type | Explosion-proof Certification | - | Parameter Type |
| SL | 30=Current Sensor | 00= Basic Type | - | 1=1A Current |
5=5A Current X=Other Current Specifications | ||||
|
Series Model Information
| Product Model | Product Parameter Description |
| SL3000-1 | Current Sensor (Single-phase), 1A Input, -1V~1V Analog Output |
| SL3000-5 | Current Sensor (Single-phase), 5A Input, -1V~1V Analog Output |
| SL3000-X | Current Sensor (Single-phase), Input Current X Optional, -1V~1V Analog Output |
