SW3600-X
Tongpin Three-in-One Intelligent Wireless Sensor
Category:
The SW3600-X series temperature and vibration integrated intelligent wireless sensor combines sensor data collection, edge processing, and Zigbee wireless communication functions. The product is equipped with a large-capacity lithium battery, a three-axis vibration sensing accelerometer, PT100 platinum resistance, and an electret microphone. It can accurately, quickly, and continuously detect five types of status signals: three-axis vibration, temperature, and sound of the equipment. Embedded with intelligent diagnostic algorithms, it is widely applicable in industrial AI fields such as industrial equipment condition monitoring, fault prediction, and fault diagnosis, enabling precise diagnosis of early faults in rotating machinery such as bearings and gearboxes.
Contact:
Design characteristics
· Range: Broadband: 16g on X/Y/Z three axes; High frequency: 50g on Z axis, 16g on X/Y axes; Broadband: 60g on X/Y/Z three axes
· Frequency response range: Low frequency: 0.5Hz~1.6kHz on X/Y/Z three axes; High frequency: 0.5Hz~28kHz on Z axis, 0.5Hz~1.6kHz on X/Y axes; Broadband: 0.1Hz~8kHz on X/Y/Z three axes
· Temperature measurement range: -50℃~200℃
· Operating ambient temperature: -40℃~70℃; long-term use at high temperatures will affect battery life
· Operating duration: not less than 3 years
· Transmission distance: up to 450 meters without obstruction
· Explosion-proof rating: Ex ia IIC T4 Ga
Product Advantages
· Mainly applied in industrial AI fields such as industrial equipment condition monitoring, fault prediction, and condition diagnosis analysis.
· Simultaneously detects three-axis vibration, temperature signals, and sound signals, outputting various feature values and waveform data.
· Wide frequency response range enables precise diagnosis of early faults in mechanical equipment such as bearings and gearboxes.
· Temperature measurement element uses imported platinum resistance, offering good stability and high accuracy.
· Sound-sensitive element features full-band noise reduction, anti-howling, and anti-saturation.
· Zigbee wireless transmission with star topology networking, providing fast transmission speed.
· Ultra-low power design ensures long battery life.
· Antenna built-in with high protection level, suitable for complex industrial environments with humidity, dust, and strong interference.
Product Parameters

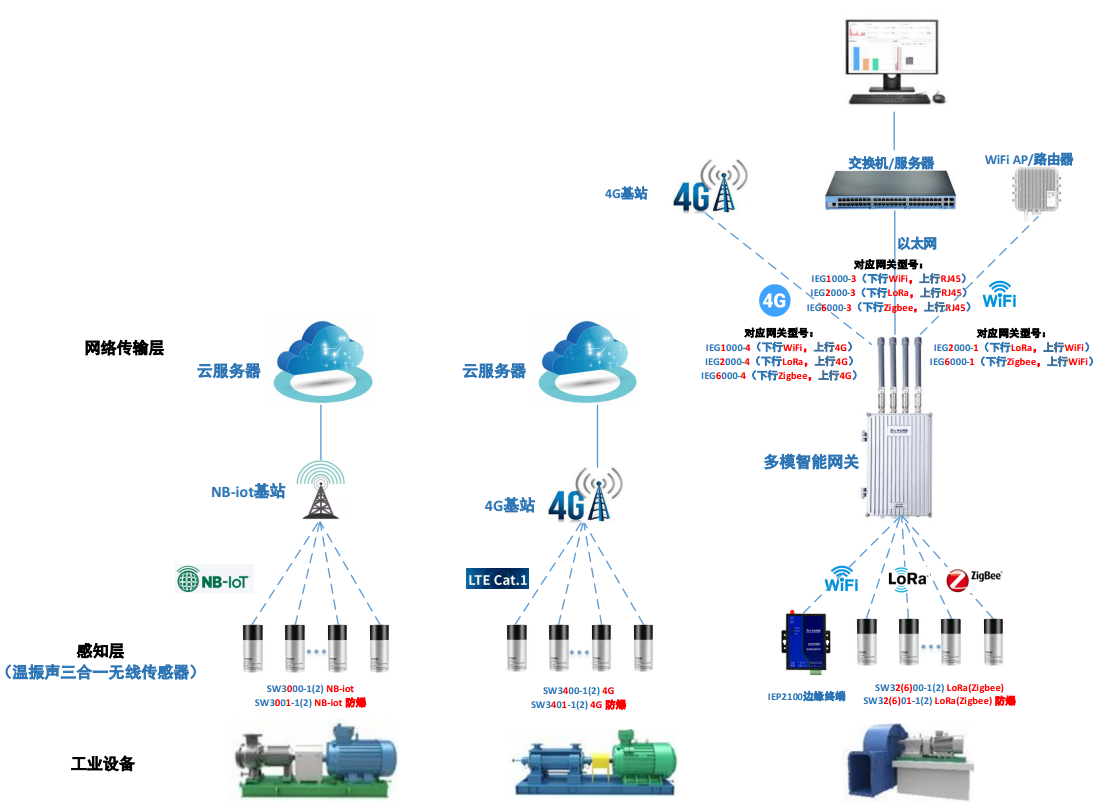

Application Topology
Product Specifications
| Parameters |
Low Frequency (MEMS) Indicators |
High Frequency (MEMS + Piezoelectric) Indicators |
Broadband (MEMS) Indicators |
| Vibration Parameters |
|
||
| Axial |
3-Axis Acceleration |
3-Axis Acceleration |
3-Axis Acceleration |
| Vibration Range |
±16g |
Z-axis ±50g, X and Y axes ±16g |
±60g |
| Frequency Range |
0.5Hz~1.6kHz (±3dB) |
Z: 0.5Hz~28kHz (±3dB), X and Y: 0.5Hz~1.6kHz (±3dB) |
0.1Hz~8kHz (±3dB) |
| Sampling Frequency |
256Hz~51.2kHz |
256Hz~51.2kHz |
256Hz~51.2kHz |
| Sampling Accuracy |
24-bit |
24-bit |
24-bit |
| Number of Sampling Points |
1K, 2K, 4K, 8K, 16K, 32K, 64K, 128K, up to 2M |
1K, 2K, 4K, 8K, 16K, 32K, 64K, 128K, up to 2M |
1K, 2K, 4K, 8K, 16K, 32K, 64K, 128K, up to 2M |
| Measurement Accuracy |
<5% |
<5% |
<5% |
| Battery Parameters |
|
||
| Battery Voltage and Capacity |
3.6V Primary Lithium Thionyl Chloride Battery, Capacity 19Ah |
3.6V Primary Lithium Thionyl Chloride Battery, Capacity 19Ah |
3.6V Primary Lithium Thionyl Chloride Battery, Capacity 19Ah |
| Service Life |
Not less than 3 years under default configuration |
Not less than 3 years under default configuration |
Not less than 3 years under default configuration |
| Temperature Parameters |
|
||
| Sensitive Material |
PT100 Grade A |
PT100 Grade A |
PT100 Grade A |
| Measurement Range |
-50°C~200°C |
-50°C~200°C |
-50°C~200°C |
| Accuracy |
±1°C |
±1°C |
±1°C |
| Sound Parameters |
|
||
| Directionality |
Omnidirectional |
Omnidirectional |
Omnidirectional |
| Sensitivity |
-58dB |
-58dB |
-58dB |
| Signal-to-Noise Ratio |
≥60dB |
≥60dB |
≥60dB |
| Communication Parameters |
|
||
| Communication Method and Frequency Band |
Zigbee (IEEE 802.15.4) |
Zigbee (IEEE 802.15.4) |
Zigbee (IEEE 802.15.4) |
| Communication Distance |
Up to 450 meters unobstructed |
Up to 450 meters unobstructed |
Up to 450 meters unobstructed |
| Environmental Parameters |
|
||
| Operating Temperature |
-40°C ~ 70°C |
-40°C ~ 70°C |
-40°C ~ 70°C |
| Storage Temperature |
-50°C ~ 105°C |
-50°C ~ 105°C |
-50°C ~ 105°C |
| Humidity |
Maximum 95% RH (non-condensing) |
Maximum 95% RH (non-condensing) |
Maximum 95% RH (non-condensing) |
| Structural Parameters |
|
||
| Dimensions |
Diameter 46mm, Height 110mm |
Diameter 46mm, Height 110mm |
Diameter 46mm, Height 110mm |
| Weight |
300g (including battery assembly) |
300g (including battery assembly) |
300g (including battery assembly) |
| Installation Method |
Magnetic suction, adhesive, adapter stud |
Magnetic suction, adhesive, adapter stud |
Magnetic suction, adhesive, adapter stud |
| Protection Level |
IP67 (without sound detection) |
IP67 (without sound detection) |
IP67 (without sound detection) |
| Certification Parameters |
|
||
| Explosion-proof Mark |
Ex ia IIC T4 Ga |
Ex ia IIC T4 Ga |
Ex ia IIC T4 Ga |

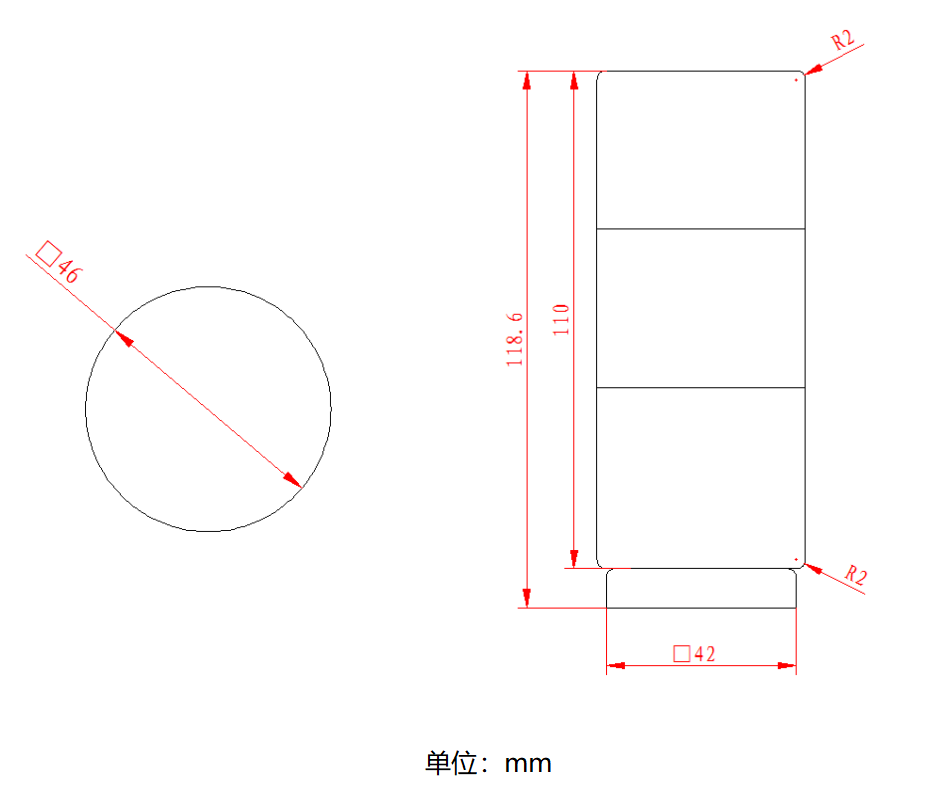

Product Dimensions
Series Model Guide
| SW |
2 |
0 |
00 |
- |
1 |
| Basic Model |
Sensor Type |
Communication Method |
Explosion-proof Certification |
- |
Parameter Type |
| SW |
2 = Temperature and Vibration Integrated |
0 = NB-IOT |
01 = Explosion-proof Type |
- |
1 = Low Frequency (MEMS) |
|
|
3 = Temperature, Vibration, and Sound Three-in-One |
1 = WIFI |
00 = Basic Type |
|
2 = High Frequency (MEMS + Piezoelectric) |
|
|
4 = Wireless Temperature Measurement |
2 = LoRa |
|
|
3 = Broadband (MEMS) |
|
|
5 = Wireless Temperature Measurement Host |
3 = RJ45 |
|
|
4 = 433Hz |
|
|
|
4 = 4G |
|
|
5 = 2.4G |
|
|
|
5 = RS485 |
|
|
6 = Infrared |
|
|
|
6 = ZigBee |
|
|
|
|
|
|
7 = Other Communication Methods |
|
|
|
System Model Information
| Product Model |
Product Parameter Description |
| SW3600-1 |
Edge computing, Zigbee communication, low-frequency three-axis (MEMS) vibration, sound, temperature 5-channel signals |
| SW3601-1 |
Explosion-proof type, Ex ia IIC T4 Ga, edge computing, Zigbee communication, low-frequency three-axis (MEMS) vibration, sound, temperature 5-channel signals |
| SW3600-2 |
Edge computing, Zigbee communication, high-frequency three-axis (MEMS + piezoelectric) vibration, sound, temperature 5-channel signals |
| SW3601-2 |
Explosion-proof type, Ex ia IIC T4 Ga, edge computing, Zigbee communication, high-frequency three-axis (MEMS + piezoelectric) vibration, sound, temperature 5-channel signals |
| SW3600-3 |
Edge computing, Zigbee communication, full-frequency three-axis (MEMS) vibration, sound, temperature 5-channel signals |
| SW3601-3 |
Explosion-proof type, Ex ia IIC T4 Ga, edge computing, Zigbee communication, full-frequency three-axis (MEMS) vibration, sound, temperature 5-channel signals |
