SW2000-X
Broadband Temperature and Vibration Integrated Intelligent Wireless Sensor
Category:
The SW2000-X series temperature and vibration integrated intelligent wireless sensor combines sensor data collection, edge processing, and NB-IoT wireless communication functions into one. The product is equipped with a large-capacity lithium battery, a three-axis vibration sensing accelerometer, and a PT100 platinum resistance thermometer. It can accurately, quickly, and continuously detect four types of status signals: three-axis vibration and temperature of the equipment. Embedded with intelligent diagnostic algorithms, it can be widely used in industrial AI fields such as industrial equipment condition monitoring, fault prediction, and fault diagnosis, enabling precise diagnosis of early faults in rotating machinery such as bearings and gearboxes.
Contact:
Design characteristics
· Range: Low frequency: 16g on X/Y/Z three axes; High frequency: 50g on Z axis, 16g on X/Y axes; Full frequency: 60g on X/Y/Z three axes
· Frequency response range: Low frequency: 0.5Hz~1.6kHz on X/Y/Z three axes; High frequency: 0.5Hz~28kHz on Z axis, 0.5Hz~1.6kHz on X/Y axes; Full frequency: 0.1Hz~8kHz on X/Y/Z three axes
· Temperature measurement range: -50℃~200℃
· Operating ambient temperature: -40℃~70℃; Long-term use at high temperatures will affect battery life
· Operating duration: Not less than 2 years
· Transmission distance: Base station coverage ranges from several kilometers to tens of kilometers
· Explosion-proof rating: Ex ia IIC T4 Ga
Product Advantages
· Mainly applied in industrial AI fields such as industrial equipment condition monitoring, fault prediction, and condition diagnosis analysis.
· Simultaneously detects three-axis vibration and temperature signals, and outputs various feature values and waveform data.
· Wide frequency response range enables precise diagnosis of early faults in mechanical equipment such as bearings and gearboxes.
· Temperature sensing element uses imported platinum resistance, offering good stability and high accuracy.
· NB-IoT wireless transmission sends data directly to the cloud without the need for a gateway, making installation convenient.
· Ultra-low power design ensures long battery life.
· Antenna has a high protection rating, suitable for complex industrial environments with humidity, dust, and strong interference.
Product Parameters

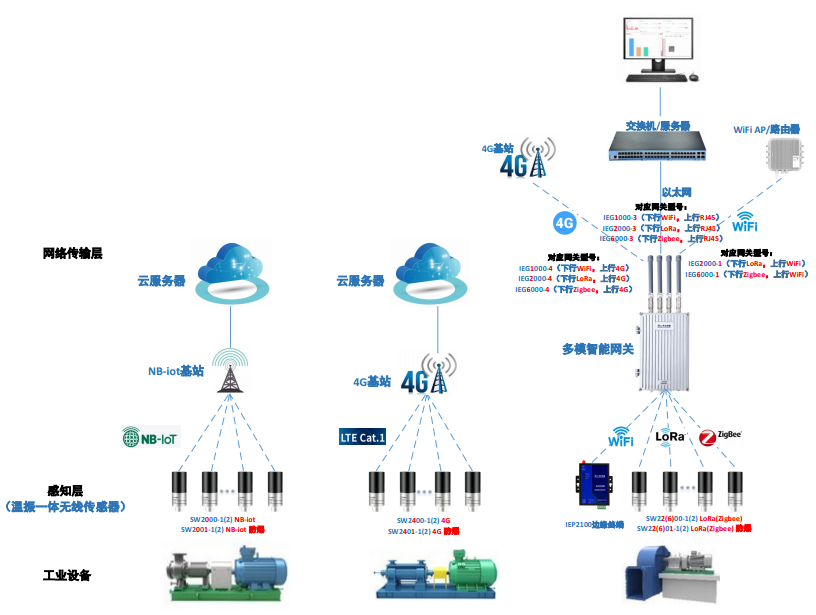

Application Topology
Product Specifications
| Parameters |
Low Frequency (MEMS) Indicators |
High Frequency (MEMS + Piezoelectric) Indicators |
Broadband (MEMS) Indicators |
| Vibration Parameters |
|||
| Axial |
3-Axis Acceleration |
3-Axis Acceleration |
3-Axis Acceleration |
| Vibration Range |
±16g |
Z-axis ±50g, X and Y axes ±16g |
±60g |
| Frequency Range |
0.5Hz~1.6kHz (±3dB) |
Z: 0.5Hz~28kHz (±3dB), X and Y: 0.5Hz~1.6kHz (±3dB) |
0.1Hz~8kHz (±3dB) |
| Sampling Frequency |
256Hz~51.2kHz |
256Hz~51.2kHz |
256Hz~51.2kHz |
| Sampling Accuracy |
24-bit |
24-bit |
24-bit |
| Number of Sampling Points |
1K, 2K, 4K, 8K, 16K |
1K, 2K, 4K, 8K, 16K |
1K, 2K, 4K, 8K, 16K |
| Measurement Accuracy |
<5% |
<5% |
<5% |
| Battery Parameters |
|
||
| Battery Voltage and Capacity |
3.6V Primary Lithium Thionyl Chloride Battery, Capacity 19Ah |
3.6V Primary Lithium Thionyl Chloride Battery, Capacity 19Ah |
3.6V Primary Lithium Thionyl Chloride Battery, Capacity 19Ah |
| Service Life |
Not less than 2 years under default configuration |
Not less than 2 years under default configuration |
Not less than 2 years under default configuration |
| Temperature Parameters |
|
||
| Sensitive Material |
PT100 Grade A |
PT100 Grade A |
PT100 Grade A |
| Measurement Range |
-50°C~200°C |
-50°C~200°C |
-50°C~200°C |
| Accuracy |
±1°C |
±1°C |
±1°C |
| Communication Parameters |
|
||
| Communication Mode and Frequency Band |
NB-IoT (B3/B5/B8) |
NB-IoT (B3/B5/B8) |
NB-IoT (B3/B5/B8) |
| Communication Distance |
Base Station Coverage Range (several to tens of kilometers) |
Base Station Coverage Range (several to tens of kilometers) |
Base Station Coverage Range (several to tens of kilometers) |
| Environmental Parameters |
|
||
| Operating Temperature |
-40°C ~ 70°C |
-40°C ~ 70°C |
-40°C ~ 70°C |
| Storage Temperature |
-50°C ~ 105°C |
-50°C ~ 105°C |
-50°C ~ 105°C |
| Humidity |
Maximum 95% RH (non-condensing) |
Maximum 95% RH (non-condensing) |
Maximum 95% RH (non-condensing) |
| Structural Parameters |
|
||
| Dimensions |
Diameter 43mm, Height 110mm |
Diameter 43mm, Height 110mm |
Diameter 43mm, Height 110mm |
| Weight |
300g (including battery assembly) |
300g (including battery assembly) |
300g (including battery assembly) |
| Installation Method |
Magnetic suction, adhesive, adapter stud |
Magnetic suction, adhesive, adapter stud |
Magnetic suction, adhesive, adapter stud |
| Protection Level |
IP67 |
IP67 |
IP67 |
| Explosion-proof Mark | Ex ia IIC T4 Ga | Ex ia IIC T4 Ga | Ex ia IIC T4 Ga |
Supporting Cables
Series Model Guide
| SW |
2 |
0 |
00 |
- |
1 |
| Basic Model |
Sensor Type |
Communication Mode |
Explosion-proof Certification |
- |
Parameter Type |
| SW |
2 = Temperature and Vibration Integrated |
0 = NB-IoT |
01 = Explosion-proof Type |
- |
1 = Low Frequency (MEMS) |
|
|
3 = Temperature, Vibration, and Sound Three-in-One |
1 = WIFI |
00 = Basic Type |
|
2 = High Frequency (MEMS + Piezoelectric) |
|
|
4 = Wireless Temperature Measurement |
2 = LoRa |
|
|
3 = Broadband (MEMS) |
|
|
5 = Wireless Temperature Measurement Host |
3 = RJ45 |
|
|
4 = 433MHz |
|
|
|
4 = 4G |
|
|
5 = 2.4G |
|
|
|
5 = RS485 |
|
|
6 = Infrared |
|
|
|
6 = ZigBee |
|
|
|
|
|
|
7 = Other Communication Methods |
|
|
|
Model Information
| Product Model |
Product Parameter Description |
| SW2000-1 |
Edge computing, NB-IoT communication, low-frequency three-axis (MEMS) vibration, 4-channel temperature signals |
| SW2001-1 |
Explosion-proof type, Ex ia IIC T4 Ga, edge computing, NB-IoT communication, low-frequency three-axis (MEMS) vibration, 4-channel temperature signals |
| SW2000-2 |
Edge computing, NB-IoT communication, high-frequency three-axis (MEMS + piezoelectric) vibration, 4-channel temperature signals |
| SW2001-2 |
Explosion-proof type, Ex ia IIC T4 Ga, edge computing, NB-IoT communication, high-frequency three-axis (MEMS + piezoelectric) vibration, 4-channel temperature signals |
| SW2000-3 |
Edge computing, NB-IoT communication, full-frequency three-axis (MEMS) vibration, 4-channel temperature signals |
| SW2001-3 |
Explosion-proof type, Ex ia IIC T4 Ga, edge computing, NB-IoT communication, full-frequency three-axis (MEMS) vibration, 4-channel temperature signals |
